Deploy your first firewall — AWS

Manual install

This page covers the manual install path — you launch a VM yourself and run the bootstrap one-liner on it. Two other launch options reach exactly the same place: infrastructure as code (Terraform / native cloud automation) and the AWS Marketplace 1-click AMI. See the launch options to compare all three.

Enforza runs as a packet-engine on a Linux VM: it classifies each flow once and enforces it in-kernel at line rate. You’ll deploy it on an EC2 instance you control, in your own VPC — a single instance to start, or one per Availability Zone for redundancy. Size the instance for your expected throughput (you can scale it up freely — the licence is flat). Plan on ~5 minutes from “launch instance” to “first packet inspected”.

Note

If you’re deploying as a NAT gateway / inspection appliance (the common case), the instance needs to forward traffic that isn’t addressed to it. The AWS default blocks this via the source/destination check; we’ll turn that off in step 3.

1. Pick a VM size

• Lab / proof-of-concept — t3.small (2 vCPU, 2 GiB) is fine for <100 Mbps and a handful of flows/sec.
• Production egress / east-west — c6i.large or c6i.xlarge. The engine auto-tunes hardening meters to instance size; thousands of new TLS handshakes/sec on c6i.xlarge.
• OS — any modern Ubuntu, Debian, RHEL, Rocky, Alma, Oracle, or Amazon Linux 2023 will work. Ubuntu 22.04+ is what we test against in CI.

2. Launch the EC2 instance

1. EC2 Console → Launch instances. Pick the AMI and size from step 1.
2. Network — the subnet you want firewalls deployed in. For an inspection / NAT gateway, this is typically a public-subnet ENI on the inspection VPC.
3. Auto-assign public IP — enable if the packet-engine has no other route to the internet. The packet-engine needs outbound TCP/443 to reach the Enforza cloud platform.
4. Security group — outbound: allow all (or at minimum HTTPS / TCP 443 to the control plane). Inbound: allow whatever you intend the firewall to receive (typically nothing on management — the engine connects out to us).
5. IAM instance profile — optional now, but if you plan to use the AWS S3 log-export sink later, attach a role with s3:PutObject on your archive bucket up-front. Saves a stop/start later.
6. Launch. Note the instance ID.

3. Disable the source/destination check

Without this step, the EC2 networking stack drops any packet whose source or destination IP doesn’t match the instance’s primary IP — i.e. exactly the packets a firewall is meant to forward. Turn it off on the instance’s primary ENI:

aws ec2 modify-instance-attribute \
  --instance-id i-0123456789abcdef0 \
  --no-source-dest-check

Or in the EC2 console: Instance → Actions → Networking → Change source/destination check → uncheck → Save.

Caution

If the instance has secondary ENIs (multi-NIC inspection topology), repeat the same change on every ENI. The check is per-ENI, not per-instance.

4. (If using AWS-managed routing) point routes at the engine

For an inspection / NAT topology: edit the route table on the protected subnet so its default route (0.0.0.0/0) targets the engine’s ENI instead of the IGW or NAT gateway. The engine forwards through itself and the AWS fabric delivers downstream. This is the same routing pattern as a self-managed NAT instance.

5. Generate a deployment (registration) key

1. In the Enforza console, go to Deployment Keys.
2. Click Mint key, give it a hint (e.g. eu-west-2-edge-1) — this becomes the engine’s display name until you rename it.
3. You’ll see a one-time curl install command. Copy it.

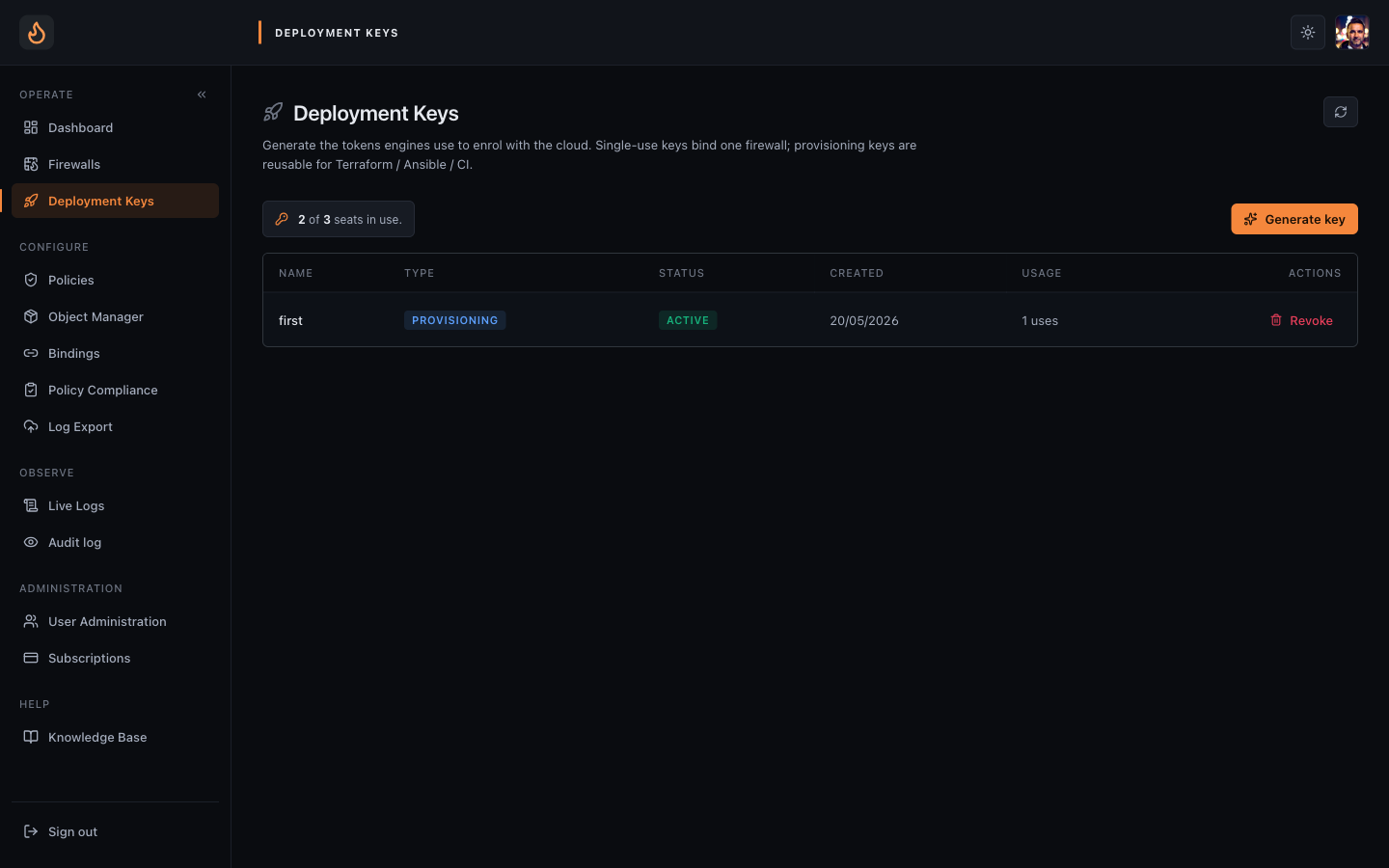

Deployment Keys — mint one per firewall. Each key is one-shot.

Note

The deployment key is a one-shot token. The first engine to use it consumes it; after that it’s gone. Mint one key per firewall.

6. Install the engine on the VM

1. SSH into the EC2 instance.

2. Paste the copied install command. Looks roughly like:

   curl -fsSL https://dl.neon.efz.io/install.sh \
     | sudo bash -s -- --regkey=YOUR-KEY-HERE

3. The script detects the distro, installs prerequisites, fetches the engine binary, swaps the registration key for a long-lived license token, and starts the enforza-engine systemd unit. ~30–60 seconds.

7. Verify

1. On the VM: systemctl status enforza-engine — should be active (running).
2. In the console: Firewalls — the new engine appears with status Online within ~10 seconds of install completing.

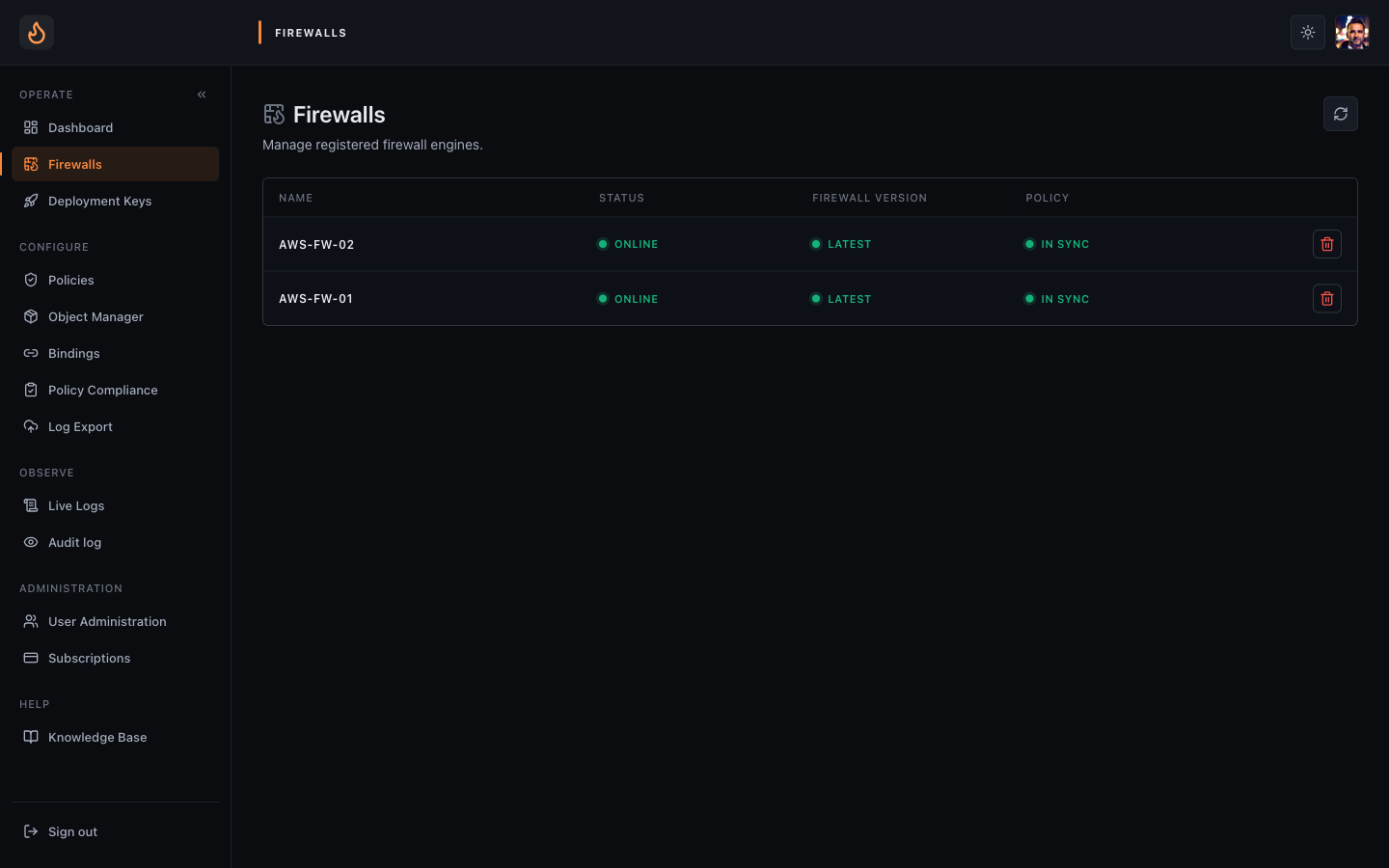

Success — the new engine appears Online on the Firewalls list.

Troubleshooting

• Install command exits with “registration key not found” — the key was consumed by another engine or has expired. Mint a fresh one.
• Engine running but never appears in the console — the VM has no outbound internet path. Verify the security group + route table + (if private subnet) NAT/IGW.
• Engine appears but no traffic gets through it — source/destination check is still on, or the route table hasn’t been pointed at the engine’s ENI. Re-check steps 3 and 4.

Next: Build a simple policy.
