Azure Single Gateway Deployment

This Terraform configuration creates a basic Azure networking setup with an Enforza server acting as a gateway/router for private subnets.

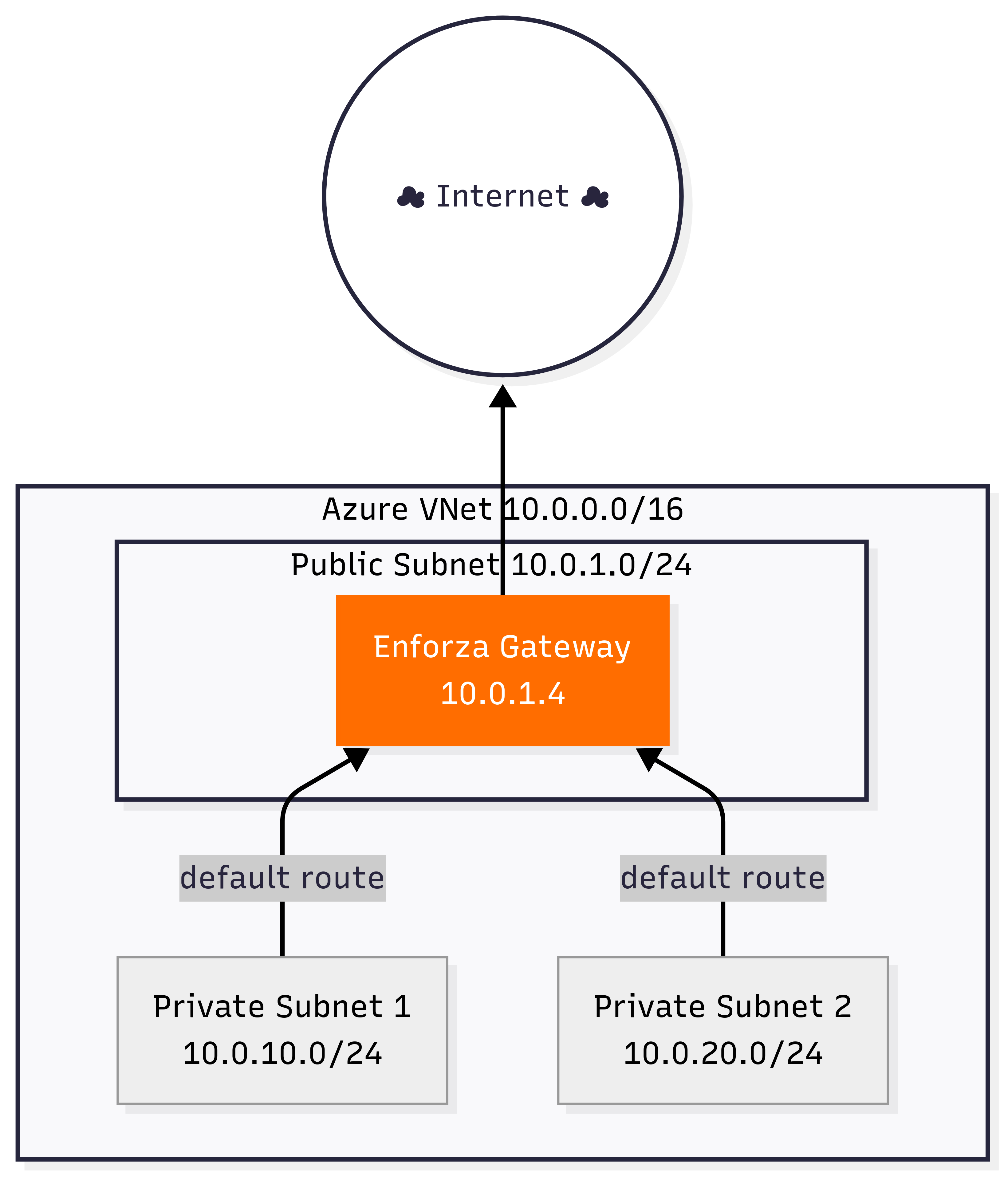

Architecture Diagram​

Single AZ Diagram

Components Created​

Network Infrastructure​

  • VNet: 10.0.0.0/16 address space
  • Public Subnet: 10.0.1.0/24 (contains Enforza gateway)
  • Private Subnet 1: 10.0.10.0/24 (routes via gateway)
  • Private Subnet 2: 10.0.20.0/24 (routes via gateway)

Enforza Gateway Server​

  • VM: Standard_B1s Ubuntu 22.04 LTS
  • Role: Router/Gateway
  • IP: Static 10.0.1.4 (private) + dynamic public IP
  • Security: NSG with "permit any any" rules
  • Features:
    • Enforza agent automatically installed, and registers to the Enforza Cloud Controller
    • Routes traffic from private subnets to internet via Enforza gateway

Route Tables​

  • Private Subnets: Default route (0.0.0.0/0) → Gateway (10.0.1.4)
  • Internet Access: Private subnet VMs route through gateway for outbound

Quick Start​

  1. Clone the repository and navigate to the Azure Single AZ directory:

    git clone https://github.com/enforza/azure-terraform.git
    cd azure-terraform/simple-single-az

  2. Authenticate to Azure:

    az login

  3. Configure variables:

    cp terraform.tfvars.example terraform.tfvars
    # Edit terraform.tfvars with:
    # - Your subscription ID
    # - Your Enforza company ID
    # - Authentication method (password or SSH key)

  4. Deploy:

    terraform init
    terraform plan
    terraform apply

  5. Manage via the Enforza Cloud Controller:

The device will have automatically registered itself in the portal. Login, and under devices, you should see a newly provisioned device with no name.

Configure a name, associate with a policy, and push!

Authentication Options​

Choose ONE method in terraform.tfvars:

Option 1: Password Authentication​

admin_password = "YourSecurePassword123!"
ssh_public_key = "ssh-rsa AAAAB3NzaC1yc2E... your-key-here"

Enforza Company ID​

enforza_companyId = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"

You can get your enforza_companyId from the Enforza Cloud Controller portal here and navigating to "Profile" and copy/pasting Company ID.

Usage Examples​

Deploy Private VMs (Optional)​

After creating the gateway, you can deploy VMs in the private subnets. They will automatically route internet traffic through the gateway:

# Example: Add to main.tf to create private VM
resource "azurerm_network_interface" "private_vm" {
  name                = "private-vm-nic"
  location            = azurerm_resource_group.main.location
  resource_group_name = azurerm_resource_group.main.name

  ip_configuration {
    name                          = "internal"
    subnet_id                     = azurerm_subnet.private_1.id  # or private_2
    private_ip_address_allocation = "Dynamic"
  }
}

Monitor Traffic​

SSH to the gateway and monitor routing:

# Watch traffic flowing through gateway
sudo tcpdump -i any -n host 10.0.10.0/24 or host 10.0.20.0/24

# Check routing table
ip route show

Test Connectivity from Private VMs​

# From a private subnet VM (once deployed)
curl ifconfig.me  # Should show gateway's public IP
ping 8.8.8.8      # Should work via gateway

Cost Estimate​

Monthly cost: ~$25-35 (UK South region)

  • Standard_B1s VM: ~$15-20/month
  • Storage (Premium SSD): ~$5/month
  • Public IP: ~$3/month
  • Networking: ~$2-7/month

Customization​

Change VM Size​

vm_size = "Standard_B2s"  # More powerful
vm_size = "Standard_B1ls" # Even cheaper (burstable)

Modify Network Ranges​

vnet_address_space = ["192.168.0.0/16"]
public_subnet_prefix = "192.168.1.0/24"
private_subnet_1_prefix = "192.168.10.0/24"
private_subnet_2_prefix = "192.168.20.0/24"

Troubleshooting​

Can't SSH to gateway?​

  1. Verify NSG rules allow SSH (should be "permit any any")
  2. Check authentication method matches terraform.tfvars
  3. Ensure public IP is assigned: az network public-ip show

Private VMs can't reach internet?​

  1. Verify route table association with private subnets
  2. Check gateway's NAT rules are active
  3. Ensure VMs in private subnets have route to 0.0.0.0/0 via 10.0.1.4

Security Note​

This configuration uses "permit any any" NSG rules for simplicity. In production:

  • Restrict SSH to specific source IPs
  • Implement more granular firewall rules
  • Consider Azure Bastion for secure access
  • Use Key Vault for credentials

Clean Up​

terraform destroy

This will remove all created resources and stop billing.
